ELTRA 消耗品代理

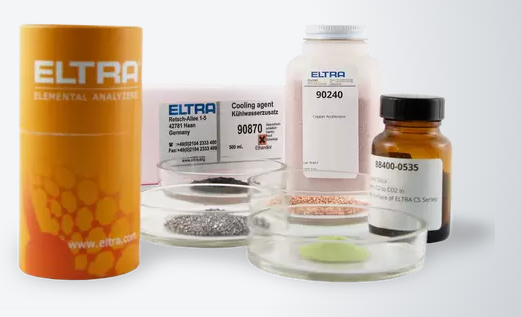

GENERAL CHEMICALS, WOOLS AND FILLINGS
90200 Anhydrone (magnesium perchlorate), 454 g 1)
90210 Sodium hydroxide, 500 g 1)
90270 Schuetze reagent, 100 g 1)
90289 Copper II oxide, 100 g 1)
88400-0535 Pt/Si catalyst, 15 g
90331 Glass wool, 454 g
90332 Glass wool, 50 g
90340 Cellulose, 50 g
90341 Cellulose, 50 g
90330 Quartz wool, 50 g
92610 Tube of high vacuum grease, 35 g
88400-0122 Filling for carrier gas purification furnace (optional for CS analyzers)
90426-1001 Filling for carrier gas purification furnace (optional for ONH analyzers)
91000-1005 Copper, flakes, 25 g
88400-0508 Steel wool, 454 g
90234 Filling for halogen trap, potasium iodide
90235 Filling for halogen trap, antimony
88600-0021 Copper oxide wire (0.5*2 mm), 100 g (could be used alternatively to Pt/Si catalyst)
ACCELERATORS FOR THE INDUCTION FURNACE
90220 Tungsten, premium, 2,500 g
90260 Iron accelerator, premium, 908 g
88600-0013 Iron accelerator, high purity, 454 g
88600-0010 Eltracell tungsten-tin accelerator, 750 g
90280 Tin accelerator, 908 g
90240 Copper accelerator, 1392 g
COMBUSTION SUPPORT FOR THE RESISTANCE FURNACE
90840 Quartz sand, 100 g
88600-0008 Combsolid, 100 g
GENERAL TOOLS AND ACCESSORIES
23110 Spatula, 1 piece, M size
23111 Spatula, 1 piece, L size
23113 Spoon, 1 piece, for dosing sample and accelerator in CS series
90145 Tongs for ceramic crucibles and boats, 220 mm 1 piece, for CS series
88400-0213 Tongs for graphite crucibles, 1 piece, for ONH series
88400-0229 Tweezers (160 mm), curved, 1 piece
88400-0472 Tweezers (145 mm), straight, 1 piece
88400-0475 Set with 6 spatula and 1 tweezers, for multiple weighing procedures
88400-0476 Micro spatula, 1 piece, XS size, for filling small capsules
TOOLS FOR STORAGE, TRANSPORTING AND WEIGHING
36121 Quartz boat, 1 piece, 74 x 22 x 10 mm, 1 piece, for weighing pins
71010 Brush, 16 mm, 1 piece, for cleaning balance from dust
88400-0477 Weighing boat, 1 piece, for weighing and usage of granulates
88400-0509 Metal pan, 1 piece, for storage of used crucibles, boats
88400-0517 Transfer pipettes for applying liquids, 3 ml, 500 pieces
88600-0015 Crucible holder, for storage of crucibles
90146 Steel pot for preheated crucibles and used crucibles
90179 Vacuum pipettes 150 x 3.5 mm, for sampling molten steel, 1000 pieces
TOOLS FOR MAINTENANCE
88400-0473 Powder funnel (plastics), 1 piece, for easy filling of chemical tubes
88400-0489 Rubber plug 14 x 20 x 24 mm, 1 piece, for sealing small glass tubes like 88400-0006
88400-0490 Rubber plug 29 x 35 x 30 mm, 1 piece, for sealing big glass tubes like 09090
71010 Brush, 16 mm, 1 piece, for cleaning balance from dust
88400-0332 Threaded rod M4x150, 1 piece, for removing paper filter holder
88400-0500 Telescope mirror, 1 piece, for inspection of upper electrode of ONH-p/ONH-2000
71032 Composite brush, 1 piece, for cleaning upper electrode of ONH-p furnace
71035 Cleaning brush / furnace brush, 1 piece, for cleaning sample inlet of ONH furnaces
71031 Metal brush, 1 piece, for cleaning graphite tip and its holder
88400-0504 Cylinder brush, brass, for intensive cleaning of lower furnace
88400-0501 Micro brush, 1 piece, for cleaning of ONH series furnace outlet tube
CONSUMABLES FOR ELTRA CS, CHS AND SPECIAL ANALYZERS
CRUCIBLES AND LIDS FOR THE COMBUSTION FURNACE
90149 Ceramic crucibles, premium, Ø 1”,
foil-wrapped, 1,000 pieces
90148 Ceramic crucibles, premium, Ø 1”,
bagged, 1,000 pieces
88400-0176 Ceramic filtering crucibles, 100 pieces
88400-0142 Ceramic filtering crucibles, small version, 100 pieces
88600-0014 Ceramic lids, 10 mm hole, 250 pieces
88600-0017 Ceramic lids, 4 mm hole, 1000 pieces
26063 Ceramic crucibles for TGA
26053 Ceramic lid for TGA
BOATS FOR THE RESISTANCE FURNACE
90153 Re-usable ceramic boats, premium, 58 x 22 x 14 mm, 500 pieces
90160 Disposable porcelain boats, 86 x 13 x 10 mm, 1,000 pieces
88600-0011 Re-usable ceramic boats, 95 x 13 x 10 mm, 500 pieces
88400-0502 Re-usable inconel boat, 54 x 18 x 13.5 mm, 1 piece
88400-0503 Re-usable inconel boat, 54 x 18 x 9 mm, 1 piece
36120 Quartz boat, 75 x 16 x 7.5 mm, 1 piece
36121 Quartz boat, 74 x 22 x 10 mm, 1 piece
46160 Combustion boat SurfaceC-800
TOOLS
36216 Combustion boat insertion stick, 1 piece (not suitable for CS-d)
36217 Combustion boat removing stick, 380 mm, 1 piece (not suitable for CS-d)
36216-2001 Combustion boat insertion stick, 1 piece (only for CS-d)
36218-2001 Combustion boat removing stick, 1 piece (only for CS-d)
88400-0499 Safety glasses, 1 piece protection when working with hot furnace
88600-0009 Screen glass with edge guard, 1 piece protection when working with hot furnace
CONSUMABLES FOR ELTRA ONH ANALYZERS
CAPSULES, FOILS AND FLUXES FOR ONH ANALYSIS
90257 Nickel capsules, 3.2×7 mm, 100 pieces
90256 Nickel capsules, 4.5 x 10 mm, 250 pieces
88400-0066 Nickel capsules, pressed, 12.5 x 5 mm, 100 pieces
90252 Tin capsules, 5 x 18 mm, 100 pieces
88400-0474 Tin foil, 36×36 mm, cup form, 200 pieces
BASKETS (REQUIRED FOR OXYGEN AND NITROGEN DETERMINATION IN REFRACTORIES)
90250 Nickel baskets, 100 pieces, 1 g each
88600-0012 Nickel baskets, high purity (low oxygen),
100 pieces, 1 g each
FLUXES (REQUIRED FOR SOME APPLICATIONS)
90251 Tin pellets, 454 g (for determination of hydrogen in titanium)
90800 Graphite, 50 g (improves oxygen determination)
90258 Nickel accelerator, 100 g (for analysis of high amount of refractories)
CRUCIBLES
90190 Graphite crucibles, 400 pieces (for copper, brass and steel analysis)
90180 Inner graphite crucibles, 100 pieces (requires outer graphite crucible 90185)
90185 Outer graphite crucibles, 50 pieces
CALIBRATION MATERIAL FOR INDUCTION FURNACES
STEEL / CAST IRON
92400-3020 Steel, 150 g, 0.001 – 0.01 % C
92400-3030 Steel, 150 g, 0.01 – 0.05 % C
92400-3050 Steel, 150 g, 0.1 – 0.2 % C
92400-3060 Steel, 150 g, 0.2 – 0.5 % C
92400-3061 Steel, 150 g, 0.2 – 0.5 % C
92400-3062 Steel, 150 g, 0.2 – 0.5 % C
92400-3070 Steel, 150 g, 0.5 – 1.0 % C
92400-3090 Cast iron, 150 g, 2.0 – 3.0 % C
92400-3091 Cast iron, 150 g, 2.0 – 3.0 % C
92400-3100 Cast iron, 150 g, 3.0 – 5.0 % C
92400-3101 Cast iron, 150 g, 3.0 – 5.0 % C
92400-3102 Cast iron, 150 g, 3.0 – 5.0 % C
92400-4005 Steel, 150 g, ~0.05 % S
92400-4010 Steel, 150 g, ~0.1 % S
92400-4020 Steel, 150 g, ~3 % S
STEEL PINS; NOMINAL WEIGHT 1 G
92500-1001 C/S pins, 454 g, ~0.2 %~C
92500-1002 C/S pins, 454 g, ~0.4 %~C
92500-1003 C/S pins, 454 g, ~0.8 %~C
92500-2001 C/S pins, 454 g, ~0.2 % S
TUNGSTEN CARBIDE

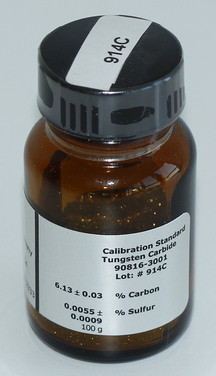

90816-3001 Tungsten carbide, 100 g, ~6.1 % C
OTHER CALIBRATION MATERIAL SUITABLE FOR RESISTANCE AND INDUCTION FURNACE
90812-3001 Limestone, 25 g, 0.04 % S
90812-3002 Limestone, 25 g, 0.4 % S
90812-3003 Limestone, 25 g, < 5 % C
90812-3004 Limestone, 25 g, 5 – 10 % C
90817-3001 Soil, 25 g, > 2 % C, S
90817-3002 Soil, 25 g, < 1 % C, S
90817-3003 Soil, 25 g, > 2 % C, S
90817-3004 Soil, 25 g, < 2 % C, < 1 % S
91900-1001 Ore, 30 g, ~1.4 % S
91900-1002 Ore, 30 g, ~4.2 % S
91900-1003 Ore, 30 g, ~3 % S
91900-2001 Zinc sulfide, 50 g, 32 % S
90810 Calcium carbonate, 100 g
90821 Barium sulphate, 50 g
OTHER CALIBRATION MATERIAL ONLY SUITABLE FOR RESISTANCE FURNACE
90710-3010 EDTA, 50 g
90710-3030 Sucrose, 50 g
90824 Sulfanilic acid, 50 g
90700-1040 Calcium oxalate, 50 g
COAL, ONLY SULFUR CERTIFIED
92511-3005 Coal, 50 g, <0.1 % S
92511-3010 Coal, 50 g, 0.1 – 0.5 % S
92511-3020 Coal, 50 g, 0.5 – 1.0 % S
92511-3030 Coal, 50 g, 1.0 – 1.5 % S
92511-3040 Coal, 50 g, 1.5 – 2.0 % S
92511-3050 Coal, 50 g, 2.0 – 3.0 % S
92511-3060 Coal, 50 g, 3.0 – 4.0 % S
92511-3070 Coal, 50 g, 4.0 – 5.0 % S
92511-3080 Coal, 50 g, >5.0 % S
COAL, PREMIUM, C/H/N/S, ASH, VOLATILE CONTENT, CERTIFIED
92550-3010 Coal, premium, 50 g, < 1.0 % S
92550-3020 Coal, premium, 50 g, ~ 1 % S
92550-3040 Coal, premium, 50 g, 1.0 – 3.0 % S
92550-3060 Coal, premium, 50 g, > 3.0 % S
COKE, PREMIUM, C/H/N/S, ASH, VOLATILE CONTENT, CERTIFIED
92560-3010 Coke, premium, 50 g
PET COKE, PREMIUM, C/H/N/S, ASH, VOLATILE CONTENT CERTIFIED
92570-3020 Pet coke, 50 g, ~ 1 % S
92570-3040 Coal, premium, 50 g, ~ 1 % S
LIQUID CALIBRATION MATERIAL
92530 Oil, 100 ml
90860 Glycerine, 100 g
CALIBRATION MATERIALS
Calibration materials may show slight variations depending on the current lot.
To see the current certification please visit www.ELTRA.com.
OXYGEN AND NITROGEN IN STEEL, PINS
91100-1001 Steel, 100 pins, 1 g each, 25-40 ppm N
91100-1002 Steel, 100 pins, 1 g each, 30-70 ppm N
91100-1003 Steel, 100 pins, 1 g each, 150-250 ppm N
91100-1005 Steel, 100 pins, 1 g each, 300-600 ppm N
91100-1007 Steel, 100 pins, 1 g each, 70-130 ppm N
91100-1010 Steel, 100 pins, 1 g each, >1000 ppm N
91100-1011 Steel, 100 pins, 1 g each, 600-1000 ppm N
HYDROGEN IN STEEL, PINS
91400-1001 Steel, 100 pins, 1 g each, 0.5-1 ppm H
91400-1002 Steel, 100 pins, 1 g each, 1.5-4 ppm H
HYDROGEN IN STEEL, BALLS

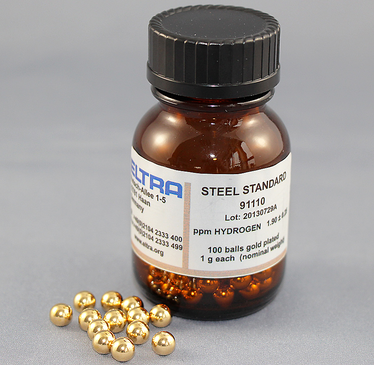

91110 Steel, 100 balls, gold plated, 1 g each, >1.9 ppm H
OXYGEN AND SULFUR IN COPPER, PINS
91000-1002 Copper, 100 pins, 1 g each, ~300 ppm O; 10 – 20 ppm S
91000-1004 Copper, 100 pins, 1 g each, ~10 ppm O; 10 – 20 ppm S
OXYGEN IN COPPER, PINS
OXYGEN, NITROGEN AND HYDROGEN IN TITANIUM, PINS
91205-1001 Titanium, 100 pins, 0.1 g each, 10-35 ppm H
91205-1002 Titanium, 100 pins, 0.1 g each, 20-70 ppm H
91205-1003 Titanium, 100 pins, 0.1 g each, 30-90 ppm H
91205-1004 Titanium, 100 pins, 0.1 g each, 60-120 ppm H
91205-1005 Titanium, 100 pins, 0.1 g each, 150-250 ppm H
91205-1006 Titanium, 100 pins, 0.1 g each, 120-150 ppm H
HYDROGEN AND CARBON IN TITANIUM, PINS (250 MG)
91305-1001 Titanium, 100 pins, 0.25 g each, < 50 ppm H
91305-1002 Titanium, 100 pins, 0.25 g each, 50 – 100 ppm H
91305-1003 Titanium, 100 pins, 0.25 g each, > 100 ppm H
IRON POWDER
91500-1001 Iron powder, ~1 % O2
1), Hazardous material
