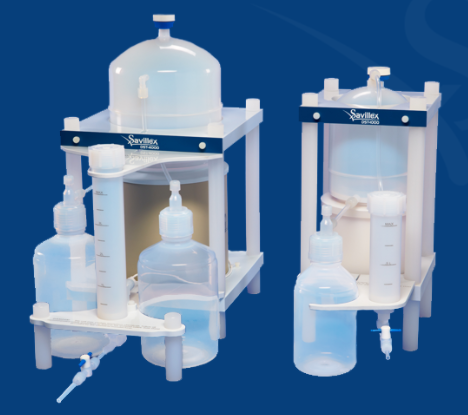

DST-1000，DST-4000 酸纯化系统 Savillex 1升/4升
Savillex公司成立于1976年，一直致力于生产优质的PFA实验室产品。新一代DST-1000A酸纯化系统，利用亚沸蒸馏原理，在一个*密闭的环境内操作，最短时间内产生质量的酸，安全、易操作，所占面积少于1平方英尺，可放于大部分实验室的通风橱。
DST可满足ICP-OES、ICP-MS、ICP等极低的检测限需要，显著降低试剂空白，服务于生命科学、环境科学、电子制造业、大学科研与政府实验室市场，深受广大用户信赖。

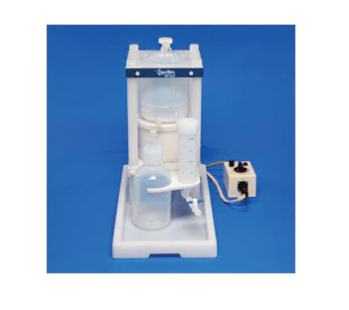

DST-1000A 酸纯化系统
DST-1000A 主要特点及优势：
P F A 材质–DST*设计，保证所有与液体接触部位均为注模PFA材质，高纯含氟聚合物构造，成为处理实验室常用酸和 HF酸等的专业设备。
一体化结构–传统的外置加热设备极易在强酸环境下受到腐蚀，DST一体化加热罩环绕蒸发室，保证温和加热过程，可按照时间和纯度的要求来控制纯化率，无需其它光照加热或外置加热设备。
无需冷水浴–DST酸纯化系统，设计先进，无须冷水浴，紧凑高效。
无需外接泵–内置废液排放装置高效快捷，无需外接泵，即可排放废液，便于操作，更加环保安全。
DST-1000A 蒸发速率
酸种类
高速率
中速率
低速率
HNO3
40 ml/hr
25 ml/hr
5 ml/hr
HCL
40 ml/hr
25 ml/hr
10 ml/hr
HF
40 ml/hr
25 ml/hr
10ml/hr
H2O
50 ml/hr
35 ml/hr
10ml/hr
DST-1000A 规格：
1.电源：
230 VAC +/- 10% 50/60 Hz
2.功率：70 瓦
3.重量：4.6 kg/ 10.15 lbs
4.容量：1 L / 33.82 oz
DST 纯化效果参考
元素
GB/T626-2006 优级纯硝酸
GB/T622-2006优级纯盐酸
GB/T620-1993优级纯氢氟酸
DST1000A纯化后
Fe
<200ppb
<100ppb
<500ppb
≈0.01ppb
As
<10ppb
<30ppb
国标未公布
≈0.01ppb
Cu
<50ppb
<100ppb
国标未公布
≈0.01ppb
Pb
<50ppb
<200ppb
<1000ppb
≈0.01ppb
Sn
国标未公布
<100ppb
国标未公布
≈0.01ppb
Ca
国标未公布
国标未公布
国标未公布
≈0.01ppb
Mg
国标未公布
国标未公布
国标未公布
≈0.01ppb
DST 订货信息
部件号
描述
525-1000-230
DST-1000A 酸纯化系统
155-01-01-1000
1 L
PFA 溶液收集瓶, 38mm 开颈接口
155-01-01-0500
500 ml
PFA 溶液收集瓶, 38mm 开颈接口
155-01-01-0250
250 ml
PFA 溶液收集瓶, 38mm 开颈接口
155-01-01-0125
125 ml
PFA 溶液收集瓶, 38mm 开颈接口
600-038-46
38 mm
PFA 密闭转移 排气开关, (2) 1／4”管路接口, 于顶部, 侧部
Description
Savillex’s DST acid purification systems provides the easiest and most cost-effective way to produce high purity acid on demand for use with ICP-MS and other metals analysis techniques. Starting with low cost trace metal grade acid, the DST-1000 can produce 500 mL of high purity HNO3, HCl or HF in approximately 12 hours, while the higher capacity, semi-automated DST-4000 can produce twice that amount in the same time period. Depending upon the lab’s acid needs, these units can pay for themselves in as little as a few months or even weeks.
All wetted parts are molded PFA
No cooling water required
Complete with heating source, separate control unit, GL45 1/4" transfer closure, and all necessary fittings
Includes a bottle bracket and a Savillex 1000 mL PFA Bottle
Depending on the usage rate of high purity acid in your lab, a DST-1000 can pay for itself in months or even weeks
CE certified and RoHS compliant
One year parts warranty
Product Details
DST Frequently Asked Questions
DST Performance Technical Note
DST-1000 Data Sheet
DST-1000 ROI Technical Note
Additional Information
Recommended Accessories
Tray, Polypropylene, 18" x 26" x 1" (730-4525)
9 mm Filter Membrane, 1-2 Micron (450-09-3)
25 mm Replacement Filter Membrane, 1-2 Micron (740-450-25-3)
1000 mL Purillex PFA Bottle with GL45 Closure (150-01-1000 )
DST-1000A酸纯化系统的详细介绍
DST-1000A酸纯化系统主要特点及优势：
P F A 材质–DST*设计，保证所有与液体接触部位均为注模PFA材质，高纯含氟聚合物构造，成为处理实验室常用酸和 HF酸等的专业设备。
一体化结构–传统的外置加热设备极易在强酸环境下受到腐蚀，DST一体化加热罩环绕蒸发室，保证温和加热过程，可按照时间和纯度的要求来控制纯化率，无需其它光照加热或外置加热设备。
无需冷水浴–DST酸纯化系统，设计先进，无须冷水浴，紧凑高效。
无需外接泵–内置废液排放装置高效快捷，无需外接泵，即可排放废液，便于操作，更加环保安全。
与液体接触部件均为注模PFA材质
一体化结构设计
操作简便
无需冷水浴
内置加热器
加热温度低于酸的沸点
大容量 1L
内置废液排放，简单方便
